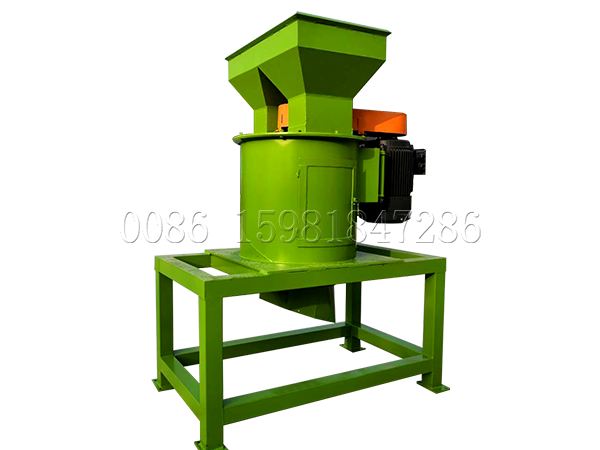

Based on absorbing the technology of the advanced equipment at home and abroad, vertical type crusher is designed optimally to be an adjustable fine crushing equipment with no sieve bar, which can be used in the crushing of mixture, gypsum, coal gangue, etc. Also it is one of the most widely used crushing equipment in the compound fertilizer industry. For the crushing of raw materials and return materials, especially the materials with high moisture content, this equipment has absolute predominance, such as strong adaptability, not easy to block, smooth blanking.
Features
Simple and reasonable structure, low operation cost;
The inner wall of the machine shell is lined with polypropylene board, which relieves the problem of material sticking to the wall and not being easy to clean up;
The chain cutting head is made of special steel, effectively improving the production efficiency;
High crushing rate, energy saving; with fine, coarse grinding function;
Rarely affected by the moisture content of materials, and the moisture content can reach about 8%;
Working noise is less than 75 db (db level), less dust pollution.
Structure

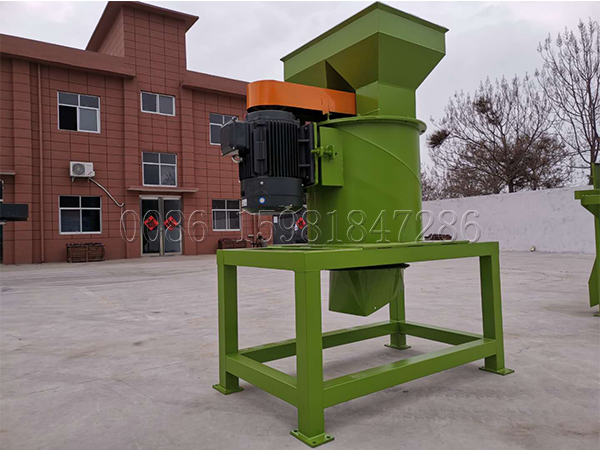

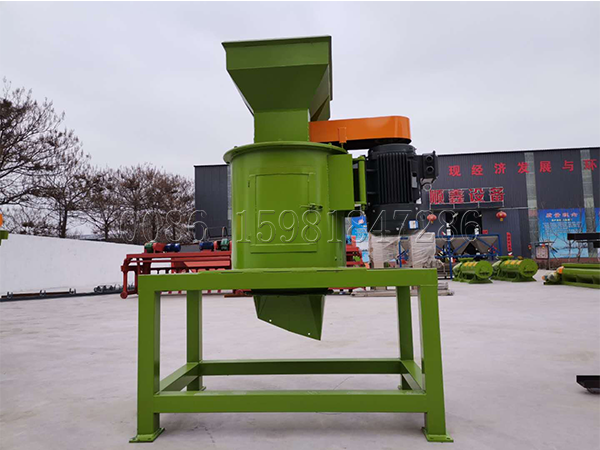

The vertical crusher is composed of bottom frame, machine casing, upper and lower shaft block, spindle, hammer head, hammer head support, pulley, electric frame and other parts. The power drives the spindle to rotate through the triangle belt; the spindle has two shaft blocks, which are installed at the upper and lower end of machine casing; the housing assembly is mounted on the lower rack; the spindle is fitted with hammer head and hammer head bracket; the hopper is mounted on the upper part of machine casing for convenient loading and unloading of hammer head; movable doors are installed on the machine casing for easy disassembly and maintenance.
